The Centre Console

Remove Rear Central Console   info: Yves De Muyter

Remove the piece of plastic around the handbrake.

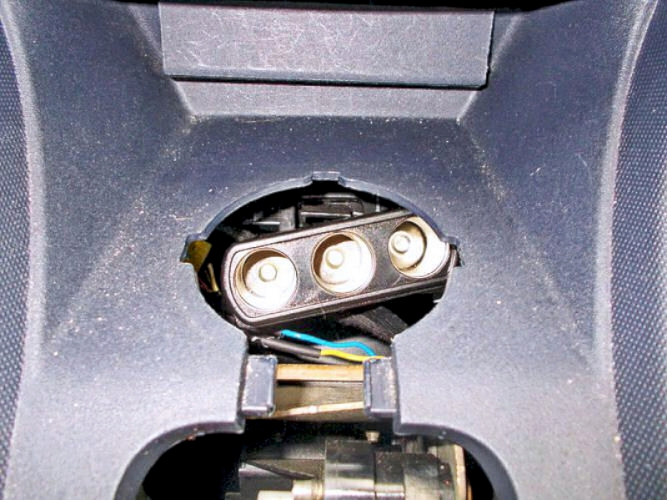

Remove a small piece of plastic from the rear cupholder and remove the bolt under.

Remove the rear console between the seats.

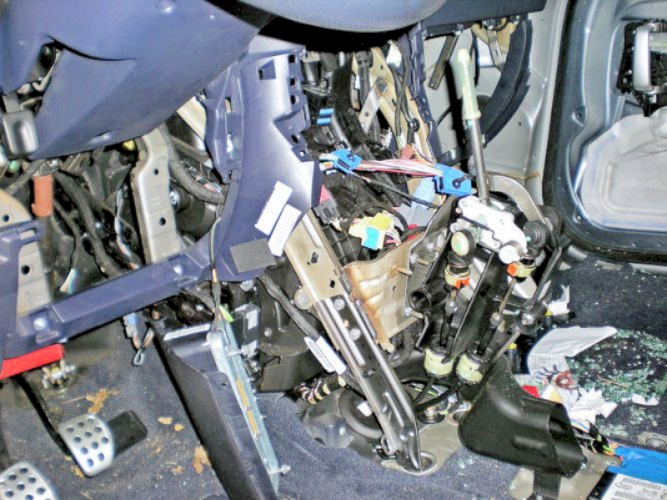

Remove Front Central Console

Remove two bolts at the bottom rear of the front console.

Under the heating-controls there is a small flap (see picture) - pull open and remove the two 10mm bolts.

Pull the front console out rearwards.

Here are two .pdf's for complete dismantling of central console including the radio and heater controls.  info: Marinus van der Leest

 Instructions for Removing the Central Console

 Drawings for Removing the Central Console
