Suspension - Lower Ball-Joint

Taken from the 1007 Workshop Manual - this only works if there is no corrosion present!

If there is any corrosion the ball joint will be very difficult to separate from the hub:  return to this page

1. Special tools

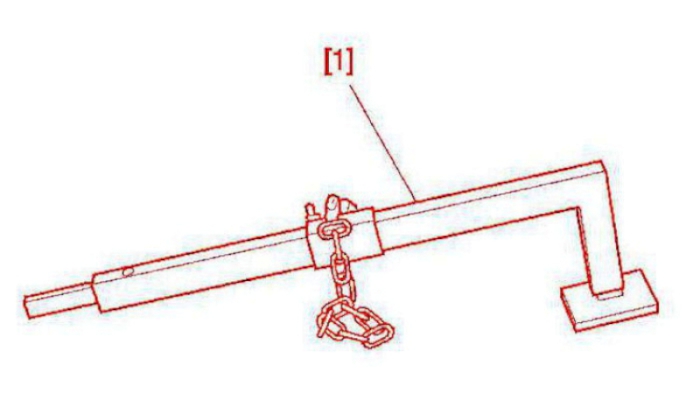

[1] pivot ball-joint uncoupling lever

2. Removing

Lift and support the vehicle with front wheels suspended


* The front wheel

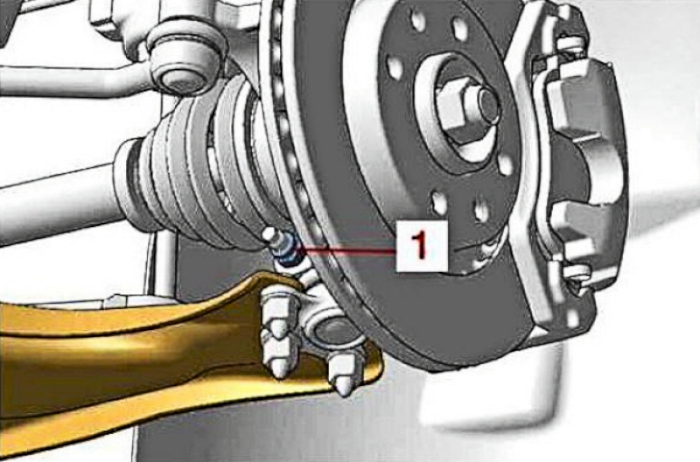

* Hub carrier lower ball joint nut (1)

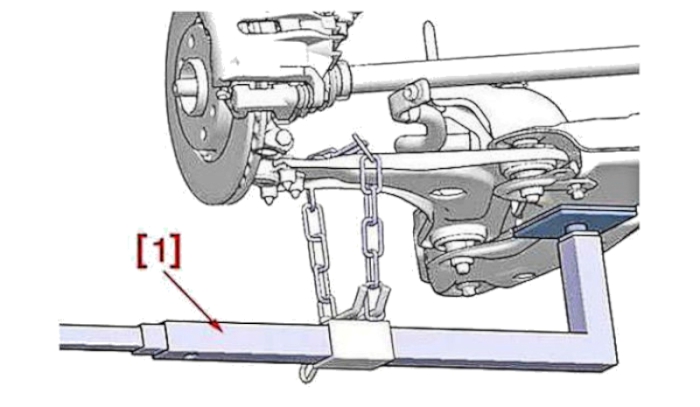

Extract the wishbone ball joint from the pivot using the tool [1], taking care not to damage the ball joint boot with the chain of the tool [1]

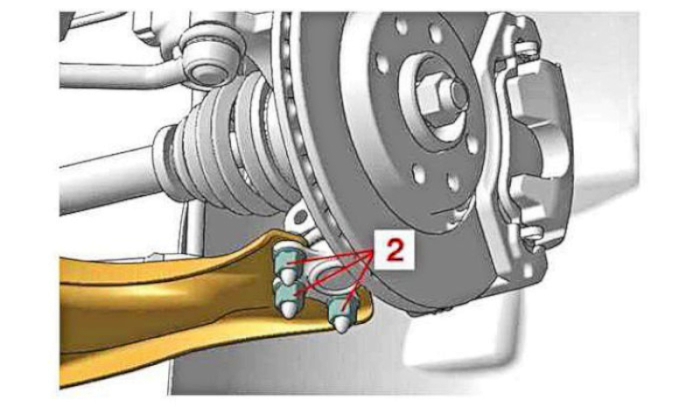

* Fasteners (2) (bottom ball-joint clamp)

* Pivot ball-joint

3. Refitting

Proceed in the reverse order to removal
