Roof Luggage Bars
The roof bars were an attractive extra on all models of the 1007.
Perhaps a matter of taste but I think the 1007 looks better with the bars

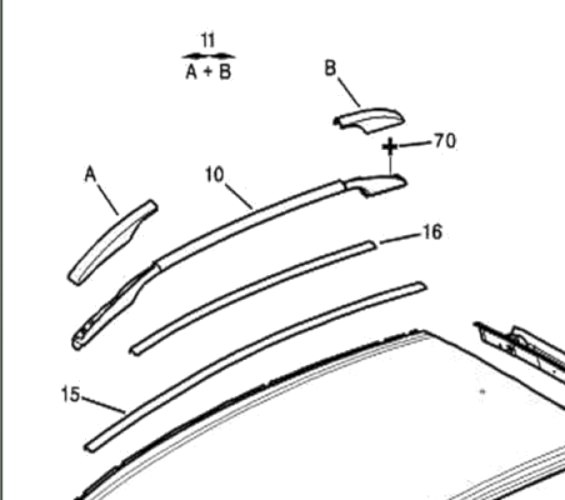

The bars themselves (10) are bolted to the roof structure underneath the removable covers (A & B) at each end. If roof bars are fitted then the rubber moulding (16) is shorter than (15)

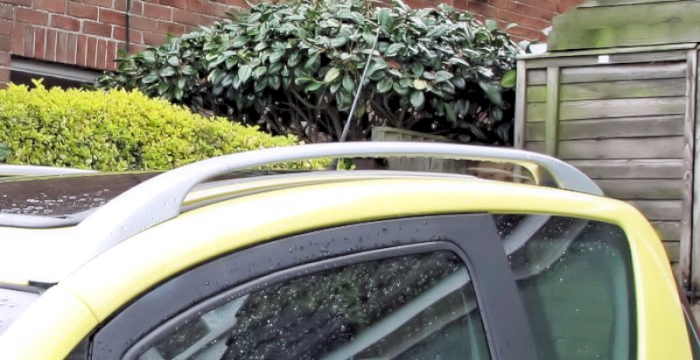

A car with the longitudinal roof bars.
They were an optional extra (£150 in 2005) available on all models of 1007; a few are still available (September 2016)

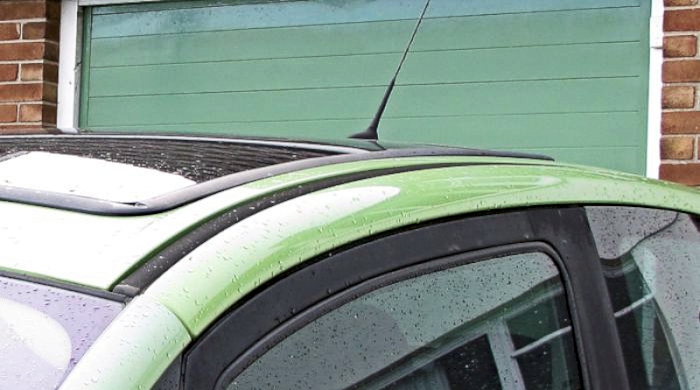

a car without the roof bars looks naked

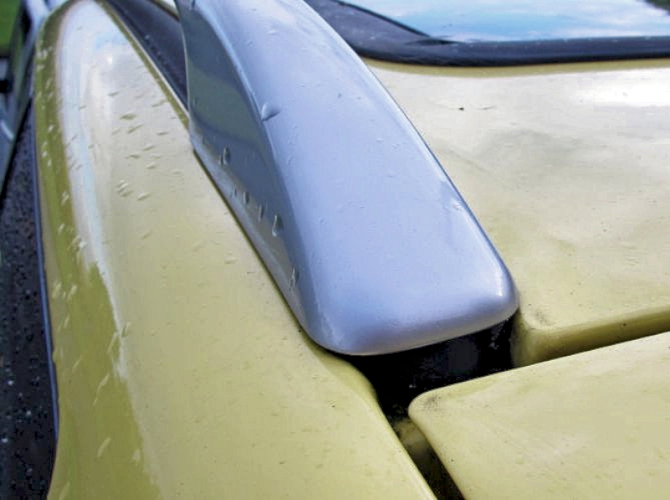

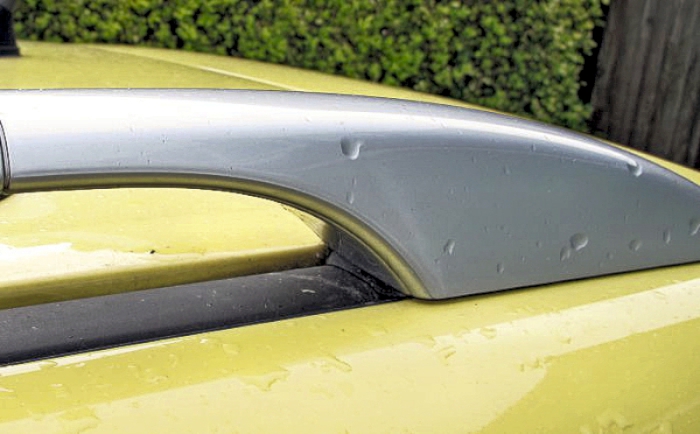

front mounting from the front - unclip the cover to access the mounting bolt
front mounting seen from the rear

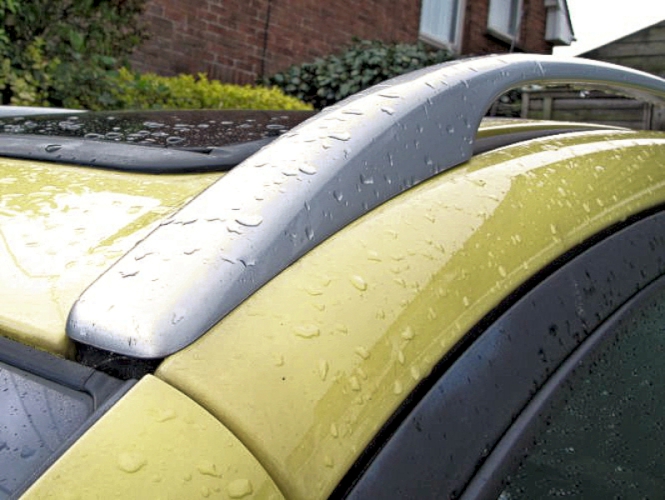

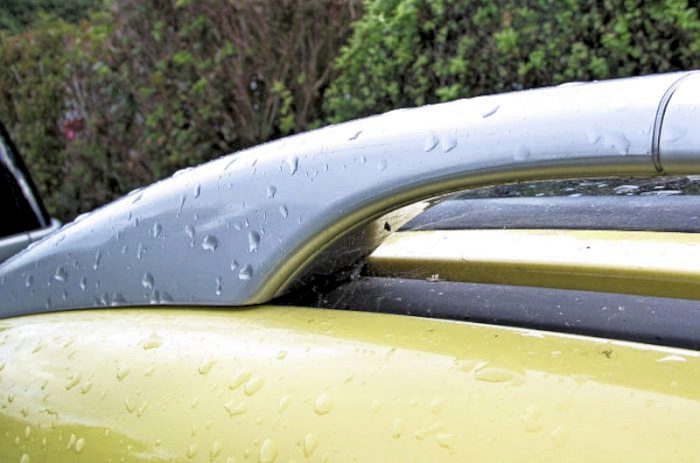

rear mounting seen from the front - unclip the cover to access the mounting bolt
rear mounting seen from the rear
To fit roof bars to a car without them

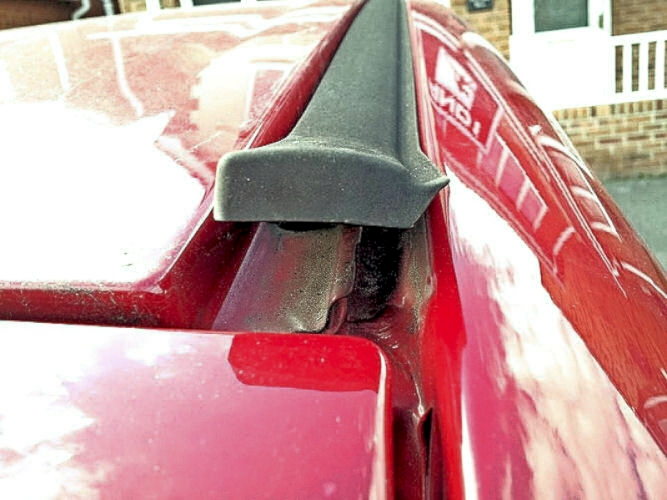

to remove the seal - prise up from the rear

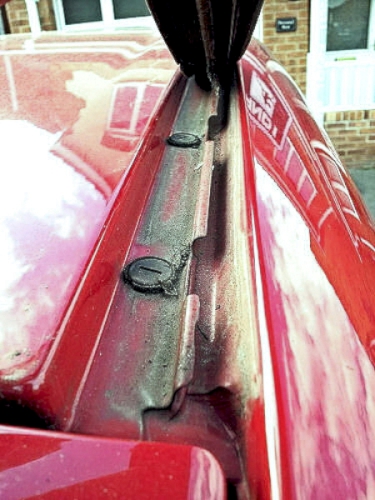

and lift the seal out to reveal the roof bar mounting holes, here with the blanking bolts still in place

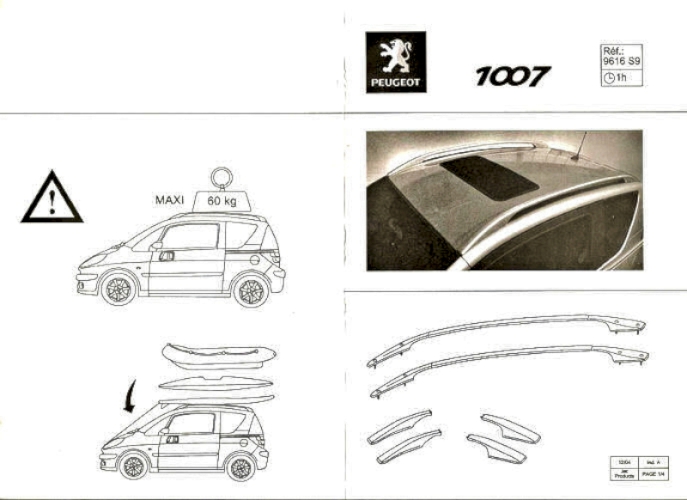

Instructions page 1

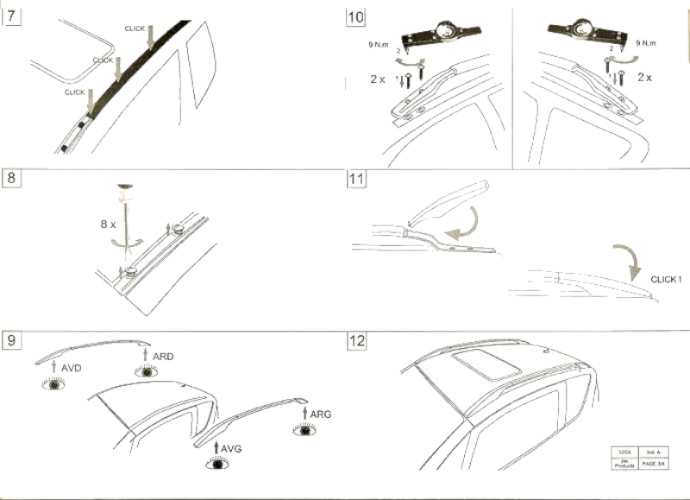

Instructions page 2
Instructions page 3
Instructions page 4
Transverse Roof Bars (roof rack)
Transverse roof bars clamping on the longitudinal bars were also available. a few are still available (September 2016)

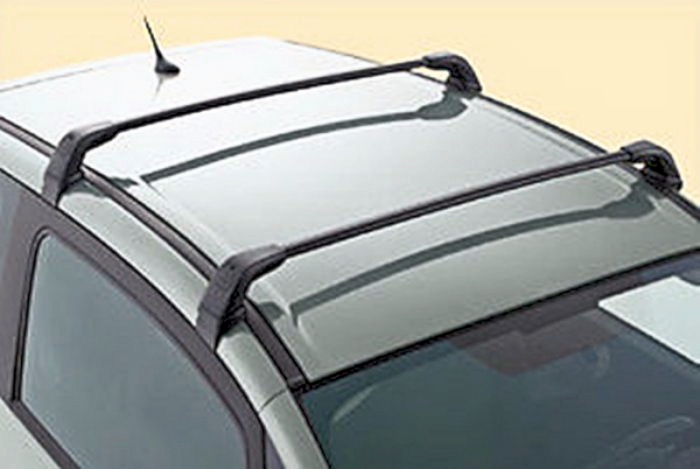

Also direct fitting transverse roof bars which don't need the longitudinal bars. a few are still available (September 2016)
