Front Bumper

Front Bumper removal

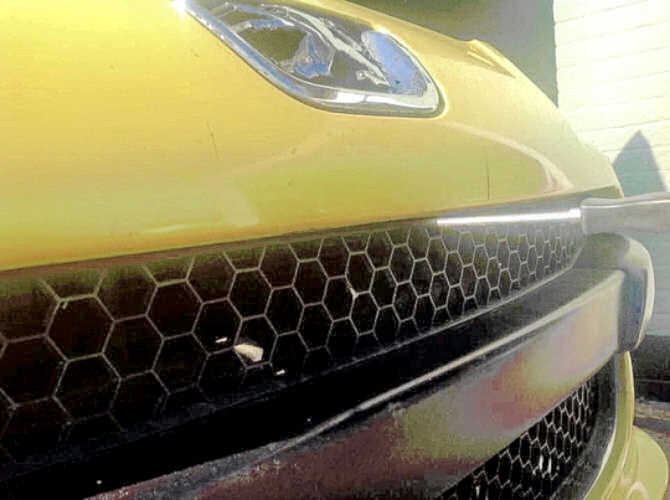

Start by removing the front panel. It is held by four T20 torx screws at the top with the lower edge simply clicked into place.

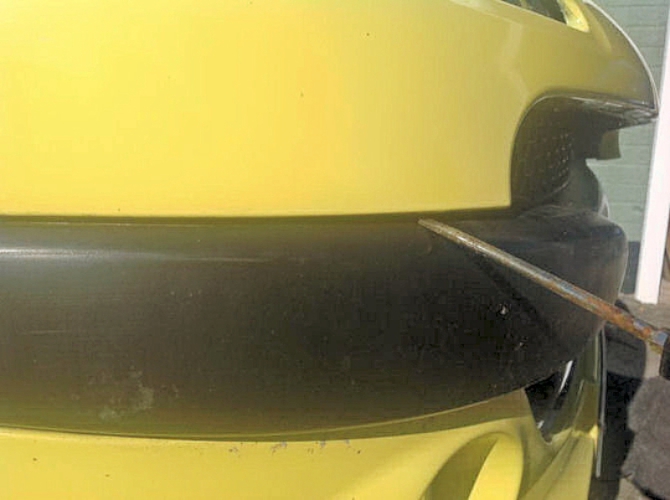

Start from one end and gently prise the out as the clips release - use a flat blade to ease the clips out whilst pulling on the bumper gently.

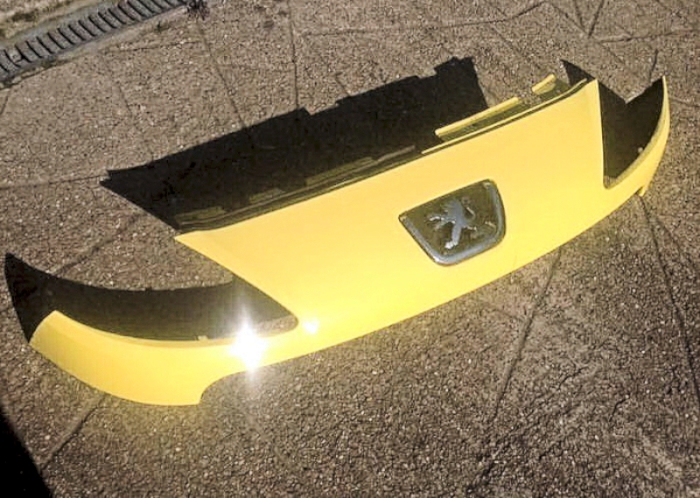

and this is the front panel after removal

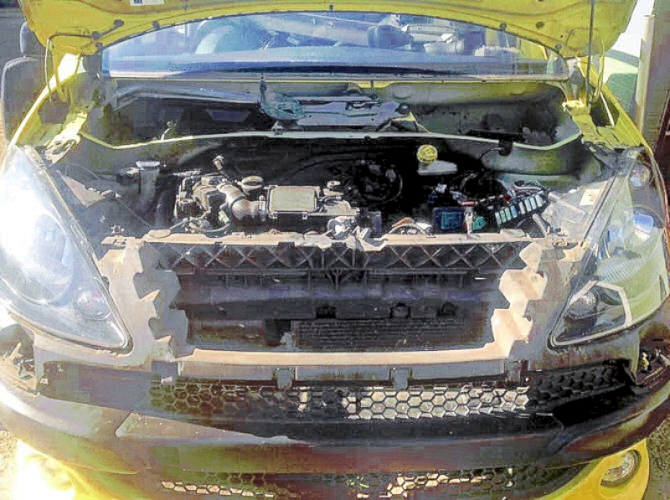

and after removing the front panel you are left with this

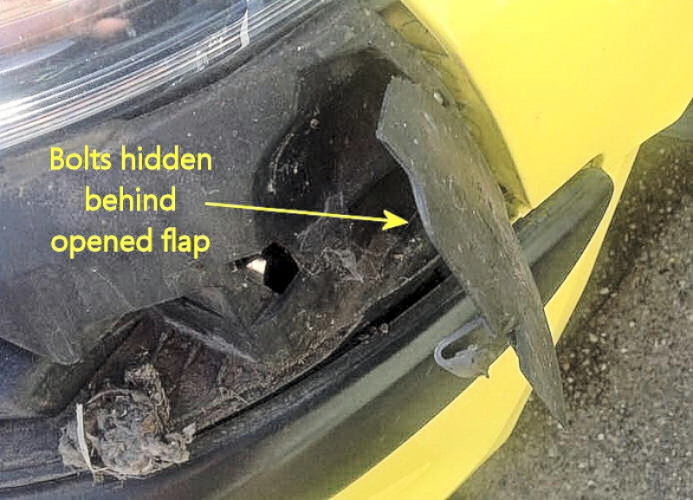

hinged rubber flaps cover two hidden bolts each side

standing at the front of the car - left side

standing at the front of the car - right side

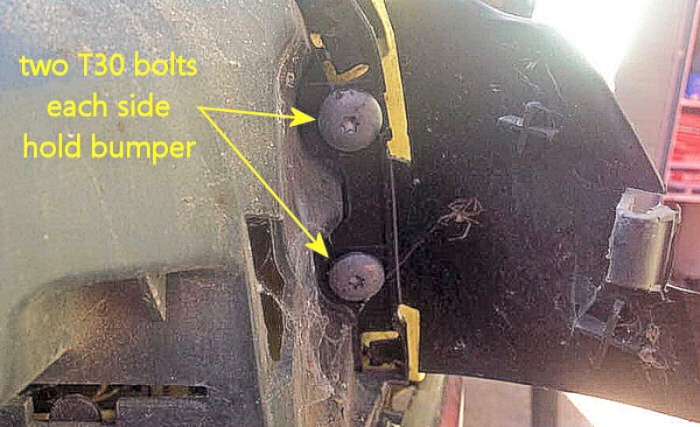

hinged flap unclipped to reveal T30 bolt heads

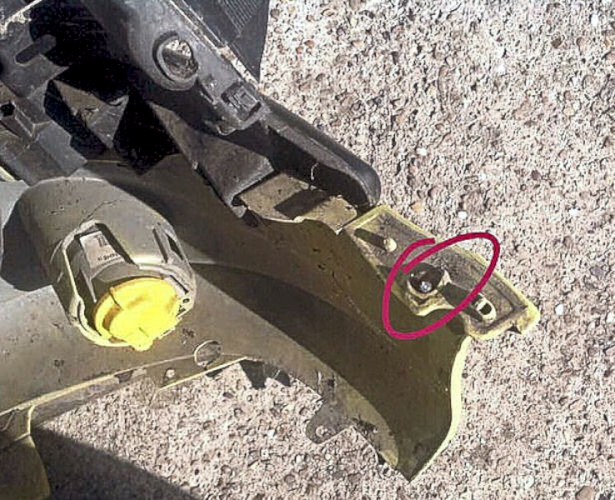

10mm hex head bolt - after removing wheel arch liner

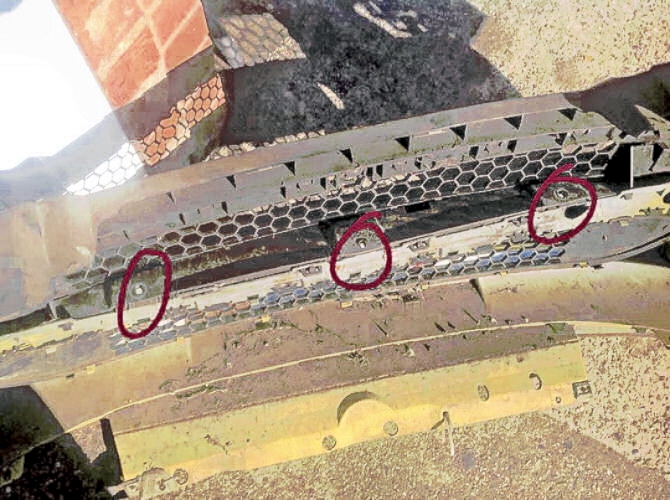

three more T30 torx screws here, on top

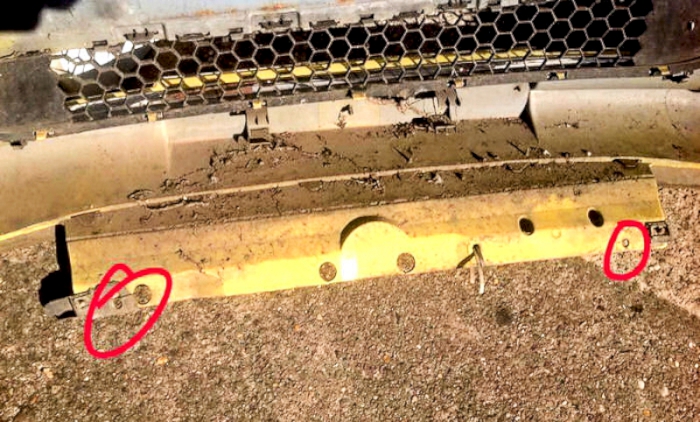

and two (or four) more torx screws here, underneath
